Designed as chamber kilns with wide-opening door these models can be easily and clearly loaded. The appealing design and attractive price are unbeatable arguments for this kiln series. The heating elements are protected in grooves.
The kilns can be used for ceramics and glass or porcelain painting or also for simple fusing works. Most chamber kilns are available from stock. These kilns are ideal for working temperatures between 900 °C and 1230 °C. The infinitely adjustable air inlet opening in the door and the exhaust air opening in the roof ensure good ventilation inside the kiln and reduce cooling times.
Standard design
- Heating elements protected in grooves
- Heating from both sides
- Designed as a tabletop model, base available as an accessory
- Infinitely adjustable fresh air inlet
- Scope of delivery includes an option for connecting an exhaust air pipe (80 mm diameter)
- Dual shell housing for low outer temperatures
- Defined application within the constraints of the operating instructions
Options (see “Nabertherm Options”)
- Base frame
- Castors for base frame
- Alternative controller P570 instead of B500 or C540
- Wall mounting device for controller instead of mounted on the kiln
| Model |
N 70 E/R |
| Tmax. |
1300°C |
| Volume |
70 Liter |
| Inner measures wxdxh |
400x380x450 mm |
| Outer measures WxDxH |
690x850x700 mm *) |
| Currency |
400 V / 50 Hz |
| Power |
5,5 kW |
| Wall plug |
CEE |
| Shelve size |
340x370 mm |
| Weight |
120 kg |
*) height with optional base +700 mm

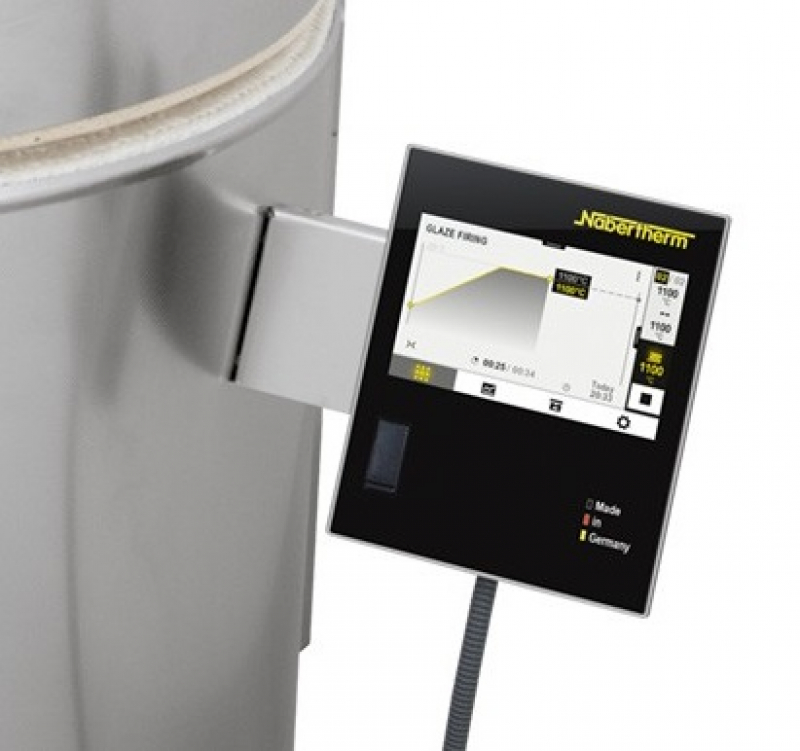

Controller B500
- microprocessor-controlled controller with touchscreen
- real-time clock for delayed start
- 4 segments (heating/hold/cooling)
- 5 programs storable
- parameters in steps of 1°C or 1 min. adjustable
- program name freely choosable
- displays firing status
- error messages in plain text
- operation and input by touchscreen
- display actual heating power in percent
- kWh-consumption counter
- controller lock
- USB-interface for process documentation, etc.
- WiFi function for monitoring the firing process on mobile devices
The set includes:
1 pc. Chamber / Frontloading kiln N 70 E/R
1 pc. Electronic controller B500 (5 programs storable, USB-interface for documentation, very easy operability)
(1st photo shows N 40 E)
