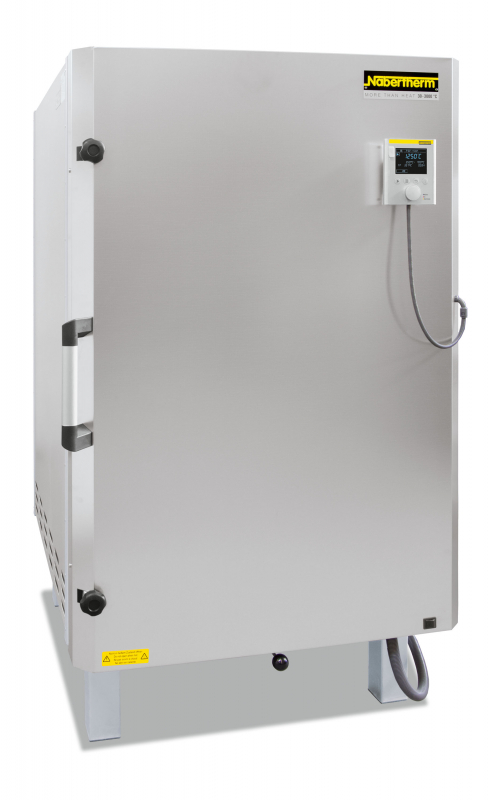

First-class craftsmanship, professional design, long service life and excellent temperature uniformity – chamber kilns from 100 liters up to 2200 liters round off the range of kilns for professionals. These kilns have proven their worth for many years, firing porcelain and stoneware and annealing glass, even when tightly stacked and at high working temperatures. You will find these frontloading kilns in ceramic workshops, studios, clinics, schools and in private homes. They are recommended for frequent firing, when the kilns are tightly stacked and when excellent temperature uniformity is needed.
A kiln should not be operated continuously to its performance limits. The models with Tmax 1300 °C are designed for regular firings up to 1250 °C. If the kiln is often fired above this temperature, we recommend our chamber kilns to 1340 °C. Most chamber kilns are available from stock.
Standard design

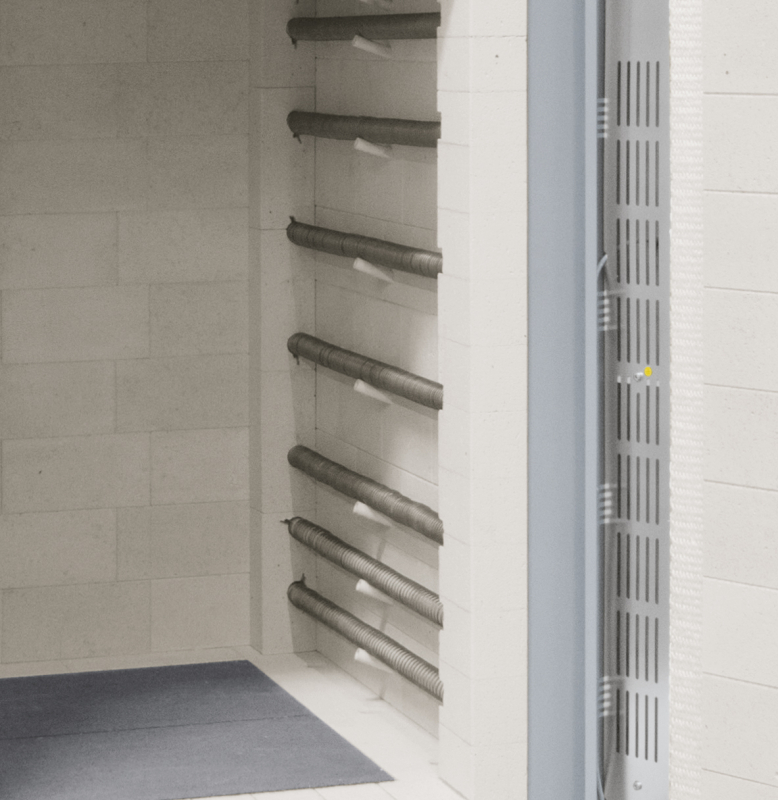

- Heating elements on support tubes ensure free heat radiation

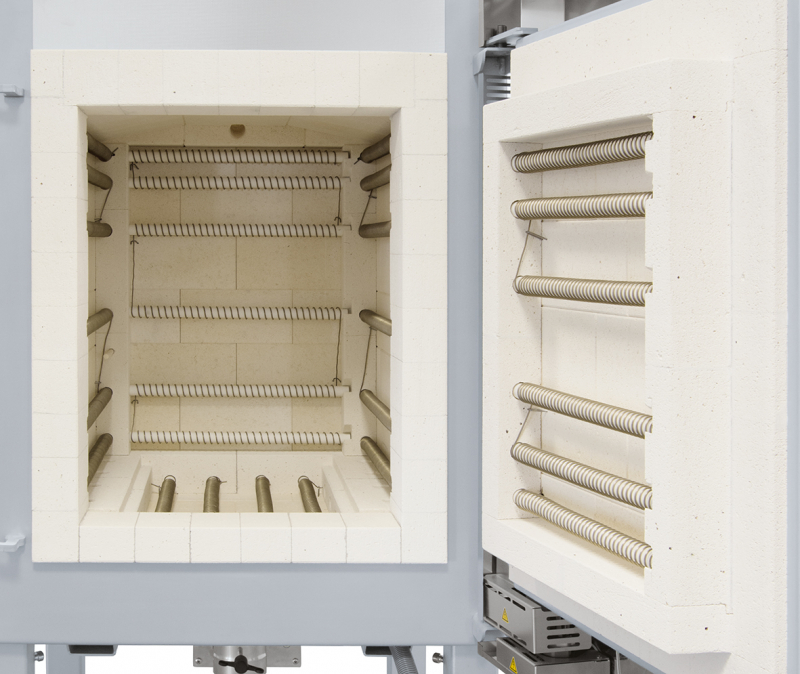

- Heating from five sides and a special arrangement of the heating elements ensure optimum temperature uniformity
- Scope of delivery includes SiC floor plates to protect the floor heating and provide for safe stacking of the kiln furniture
- Base included in scope of delivery
- Door cover made from structured stainless steel
- Semi-automatic air inlet flap that closes automatically after the drying phase in the firing program for chamber kilns up to 300 liters
- Motor-driven exhaust air flap in the middle of the kiln roof for optimum ventilation of the kiln with chamber kilns from 440 liters
- Defined application within the constraints of the operating instructions
Options (see “Nabertherm Options”)
- Manual zone control to optimize temperature uniformity
- Motor-driven air inlet flap that can be opened and closed in relation to the program
- Cooling fan for kilns up to 300 liters to reduce process times
- Stainless steel exhaust hood
- Motor-driven exhaust air flap
- Door hinges on the left side
- Base in special height
- Base mounted on castors
- Charging frame provides for ergonomic loading and unloading
- Observation hole in the kiln door (diameter 20 mm)
| Model |
N 1500 H |
| Tmax. |
1340°C |
| Volume |
1500 Liter |
| Inner measures wxdxh |
900x1200x1400 mm |
| Outer measures WxDxH |
1590x2015x2290 mm |
| Currency |
400 V / 50 Hz |
| Power |
110,0 kW |
| Wall plug |
- |
| Shelve size |
on request |
| Weight |
2700 kg |

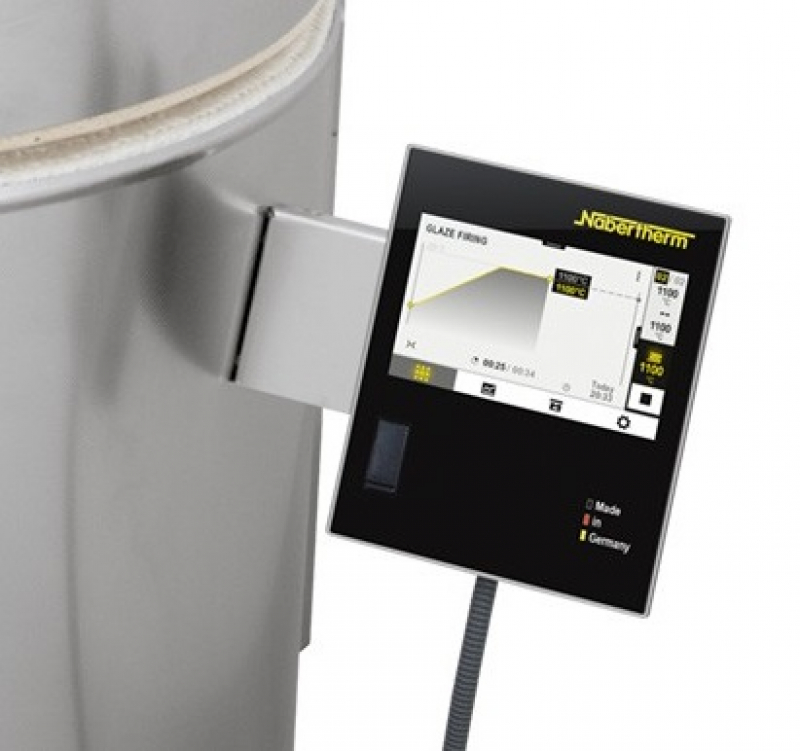

Controller B500
- microprocessor-controlled controller with Touchscreen
- real-time clock for delayed start
- 4 segments (heating/hold/cooling)
- 5 programs storable
- parameters in steps of 1°C or 1 min. adjustable
- program name freely choosable
- displays firing status
- error messages in plain text
- operation and input by Touchscreen
- display actual heating power in percent
- kWh-consumption counter
- controller lock
- USB-interface for process documentation, etc.
- WiFi function for transmitting the process data to mobile devices
The set includes:
1 pc. Chamber / Frontloading kiln N 1000 H
1 pc. Electronic controller B500 (5 programs storable, USB-interface for documentation, very easy operability)
